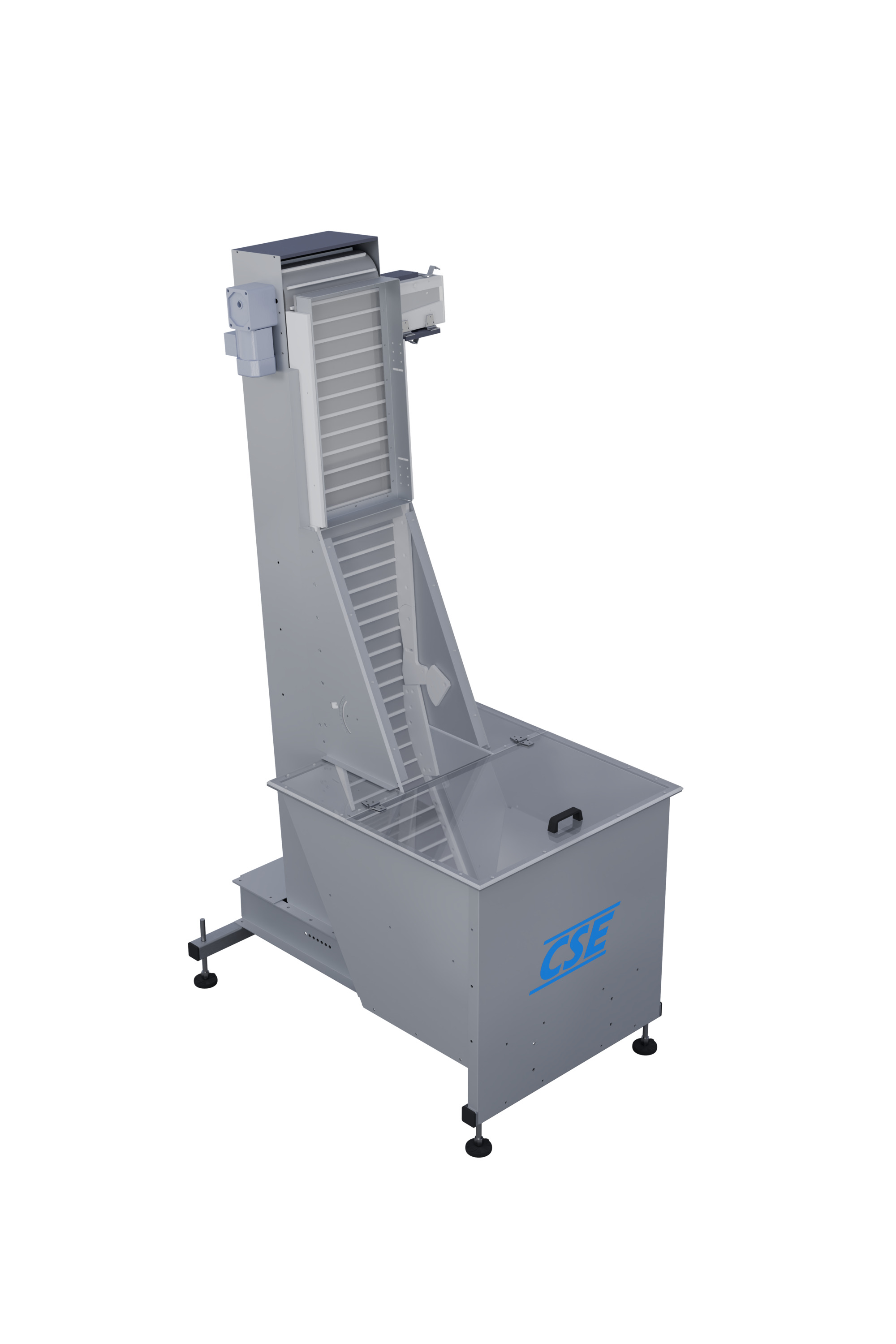

ECONO Series Sorter
About
Our ECONO series sorter is a low cost waterfall cap sorter that can be tooled for a large variety of parts. Additionally, it has a small footprint ideal for restrictive layout requirements. The ECONO series sorter uses compressed air to discharge parts from the belt with an optional blower.
We offer quick change tooling as an option on all of our cap sorters, allowing for fast and easy changeover between parts.
Specs
Performance
Up to 500 caps/min for single lane applications. Performance can vary widely depending on cap geometry and weight. For a quote with a feed rate requirement, sample caps must be provided.
Structural
Formed stainless steel hopper and column with square stainless tubing legs.
Mechanical
- Belt – 14 in (356 mm) width grey polypropylene
- Hopper – 6 ft³ (.17 m³); approximately 34 in (863 mm) from floor to lip of hopper, with 3/8" (9.5mm) thick Lexan hopper cover
- Discharge height – 84 in (2133 mm) standard
- Flights – CNC machined PVC
- Parts are discharged using compressed air
Electrical
- Power is 115 VAC single phase
- Belt motor is 230 VAC 3 phase with a variable frequency drive (115 VAC single phase input to drive)
- Start/stop switch and speed dial control
- "Track Full" sensor allows unit to be run independent of the machine it feeds
- NEMA 12 gray powder coated enamel enclosure
Options
- NEMA 4X (304 stainless steel) electrical enclosure
- Custom electrical controls
